Gidgee Global Group Defence
HYK9 Trailers
Custom-built multi-berth trailers engineered for military and defence operations. From 2 to 16 berth configurations, HYK9 trailers are built to perform in the field.
Purpose-built for defence
HYK9 trailers are custom manufactured to meet the demanding requirements of military and defence customers. Each trailer is built to order, with configurations available from 2 to 16 berths to suit operational needs of any scale.
Gallery
Products
HYK9 12-Berth Tactical K9 Transport Trailer
Purpose-built, heavy-duty 12-berth K9 transport trailer designed for operational, military, law-enforcement and working-dog applications. Insulated compartments, dual rooftop air conditioning, onboard diesel power generation, solar-supported lithium electrical systems, integrated water storage and extensive equipment storage. Designed for international deployment and configured for US towing and electrical requirements.
USD $95,000
Ex works
Dimensions & Ratings
- K9 Capacity
- 12 individual berths
- Body Length
- Approx. 6.5 m / 21.3 ft
- Overall Length
- Approx. 8.7 m / 28.5 ft including drawbar
- Overall Width
- Approx. 2.3 m / 7.5 ft
- ATM
- 3,000 kg / approx. 6,614 lb
- Shipping
- Fits within a 40-foot shipping container
Key Features
Construction
- Heavy-duty aluminium body and chassis construction
- 20 mm insulated walls, floor and roof throughout
- Taupe exterior finish — operationally appropriate low-profile appearance
K9 Compartments

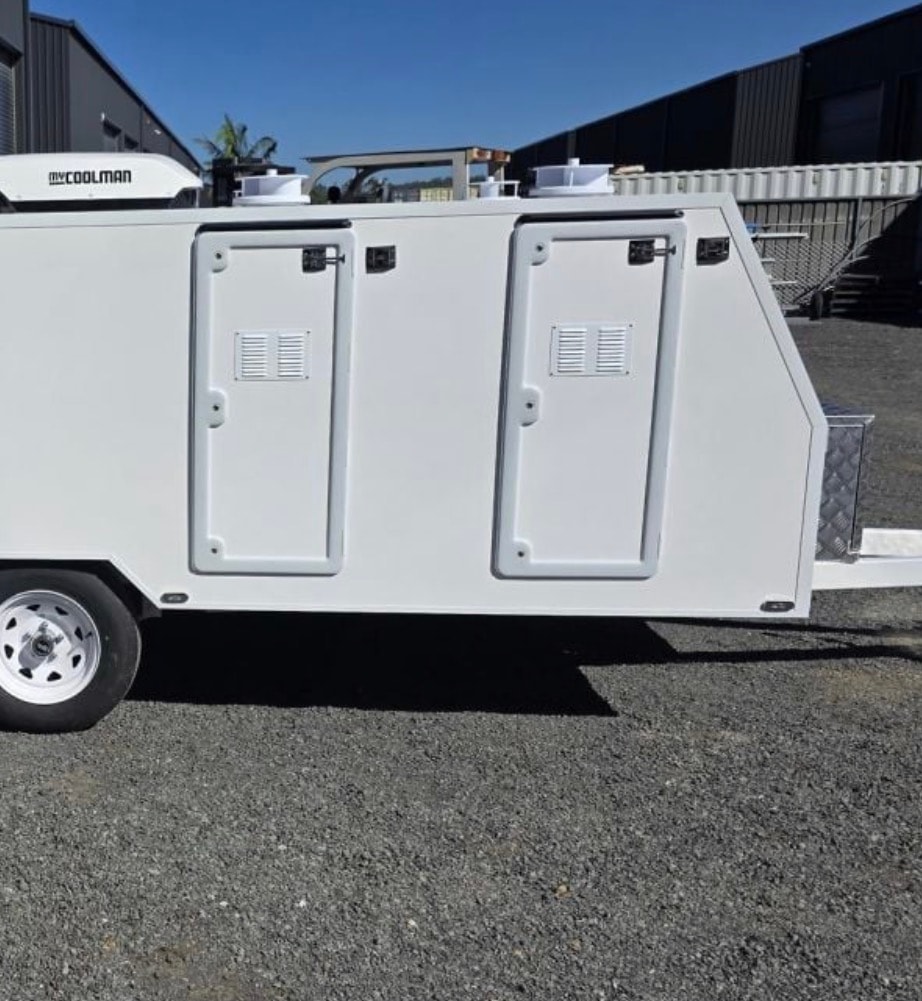

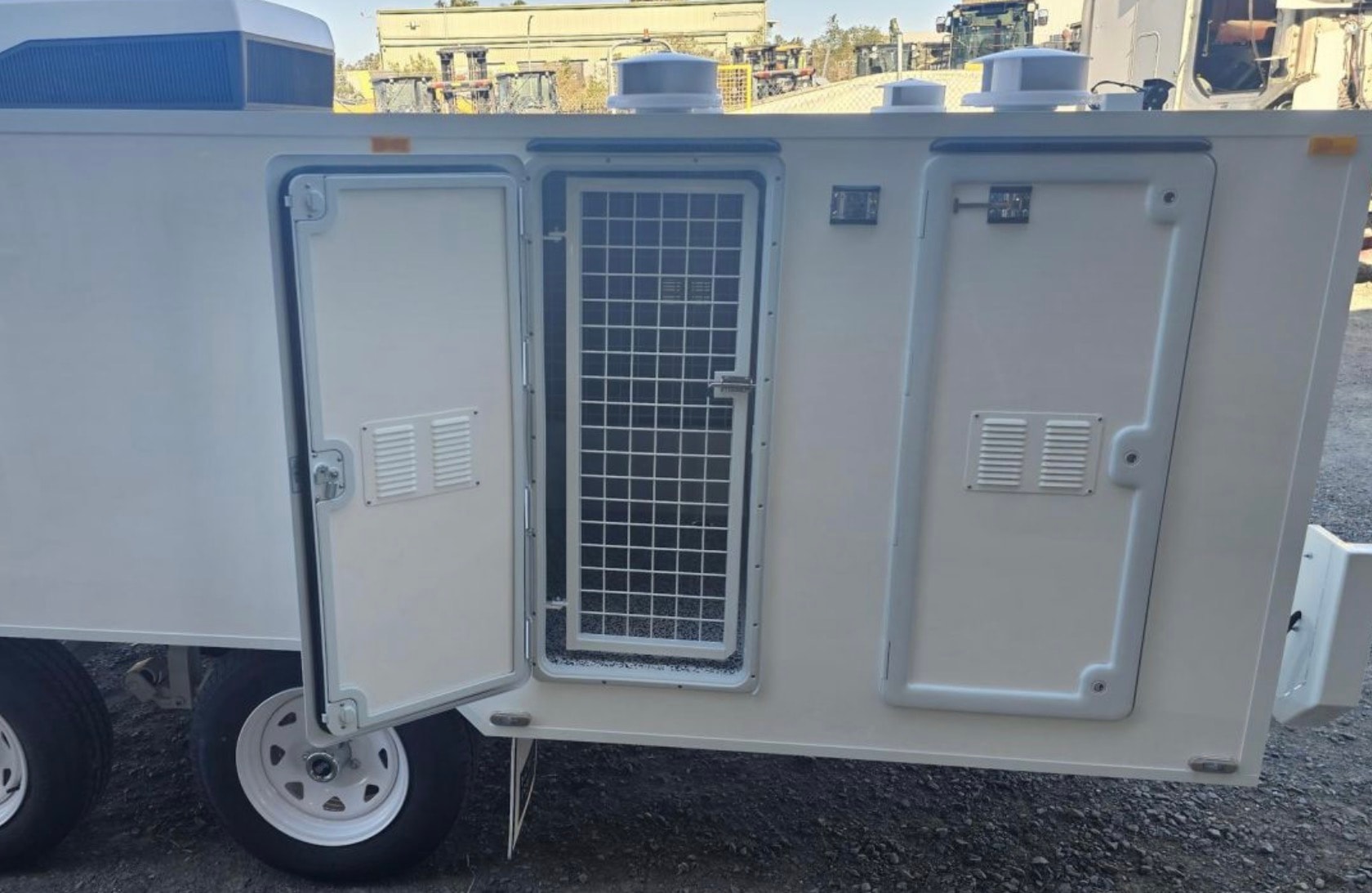

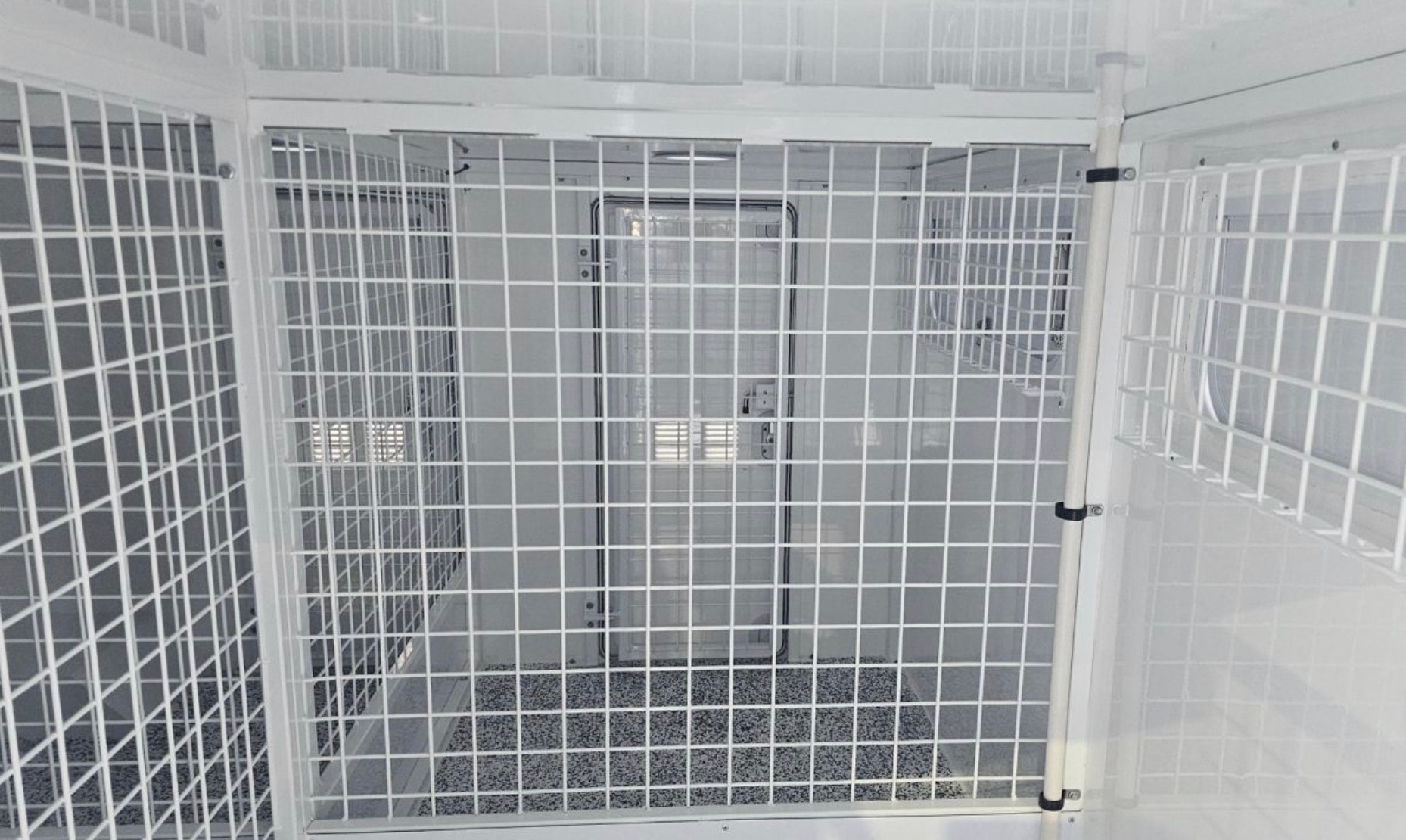

- 12 individual insulated berths with Thetford-design external access doors
- Internal aluminium mesh safety door and stainless steel slide latch per berth
- Individual rotary ventilation vent and drainage provision to each bay
Climate Control
- 2 × Webasto rooftop air-conditioning units
- Diesel generator sized to operate both A/C units simultaneously
- Rear ventilation windows for additional natural airflow
Power & Electrical
- USA-made diesel generator mounted in ventilated drawbar enclosure
- Lithium auxiliary battery with 2 × large solar panels and integrated charging
- LED lighting at all access and door areas — US-spec wiring and trailer connection
Water System
- 2 × 125 L tanks — 250 L / 66 US gal total onboard water capacity
- Electric lithium battery-powered water pump

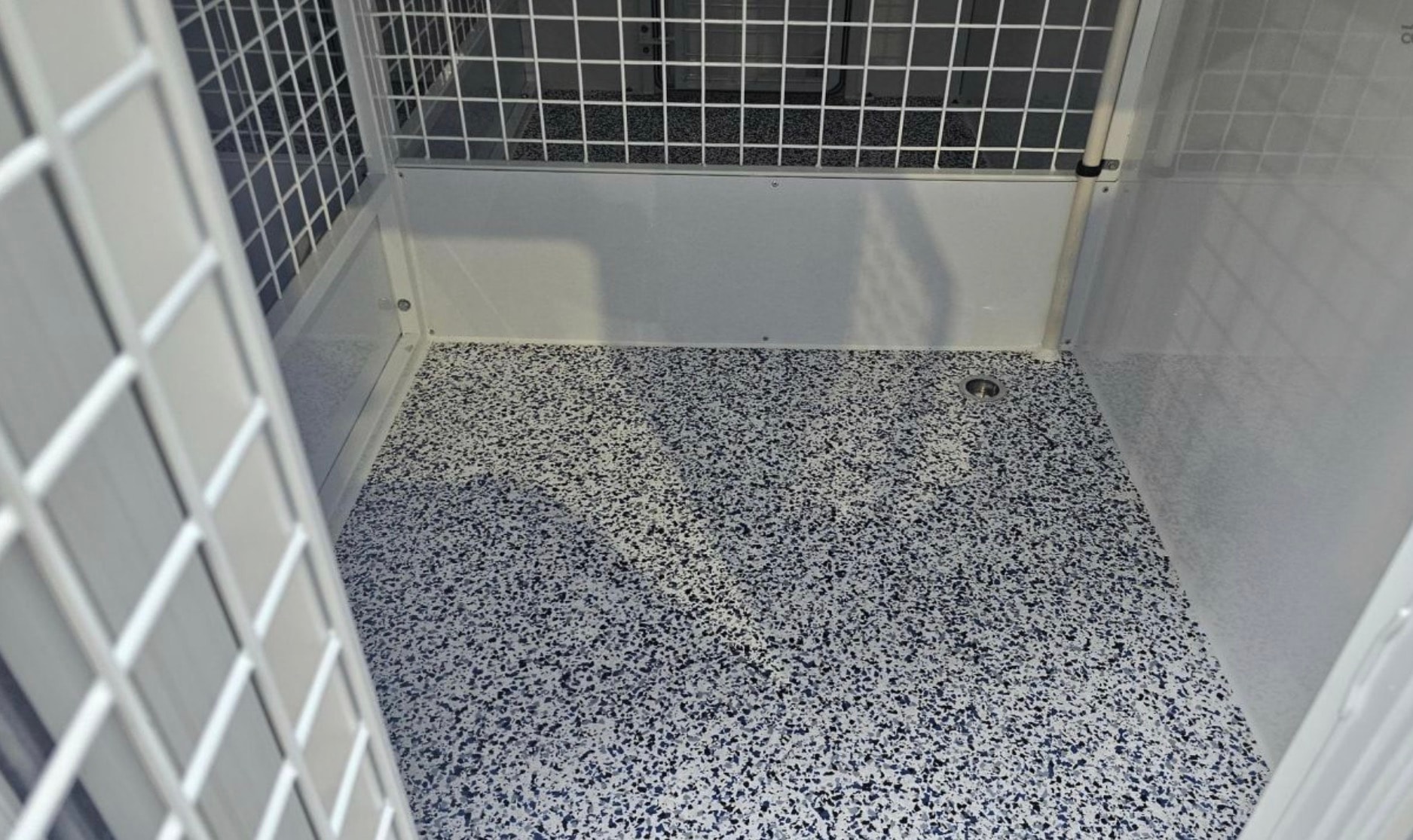

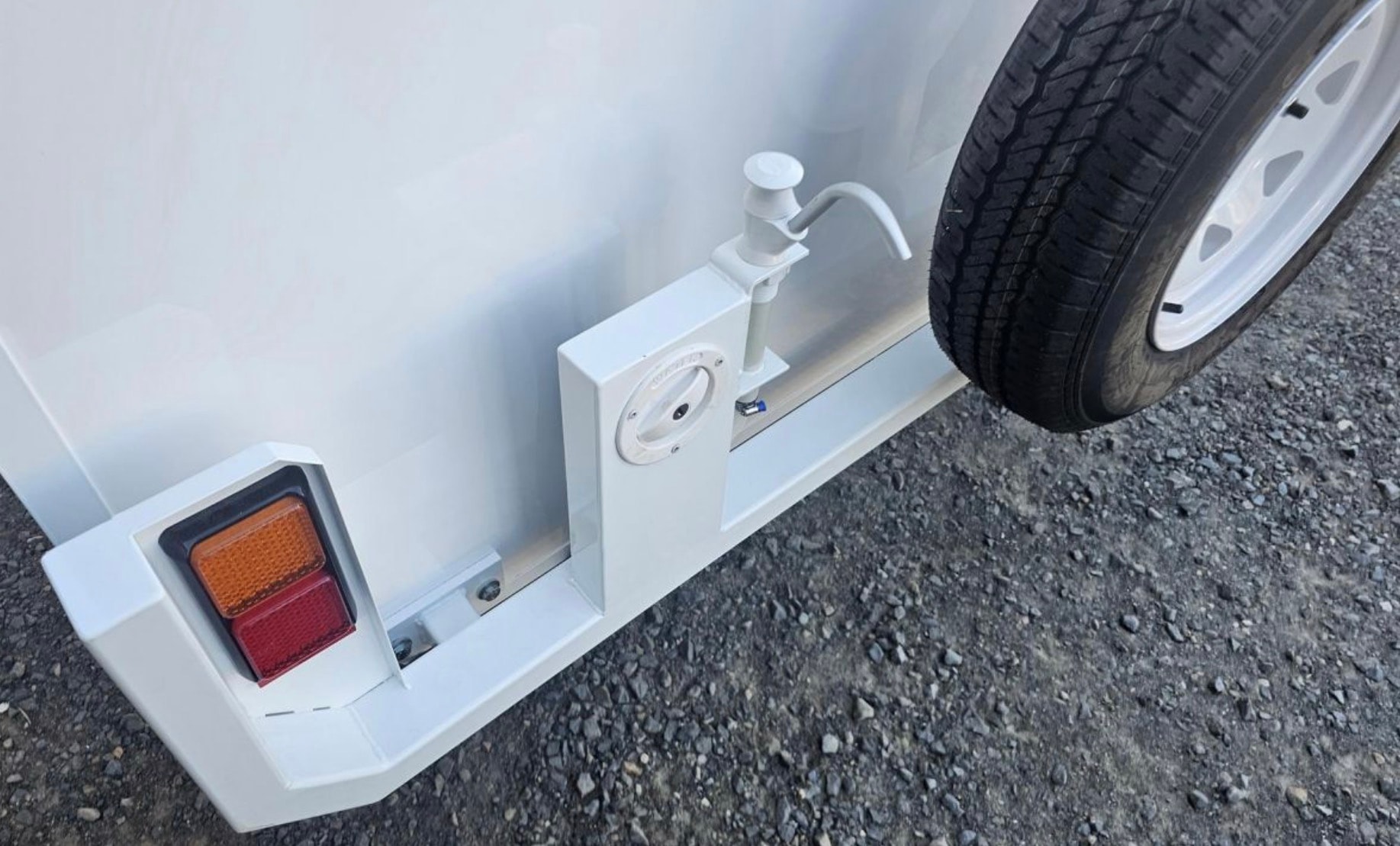

- Rear-mounted water outlet and heavy-duty epoxy resin floor with individual drain plugs
Suspension & Braking
- Heavy-duty 7-leaf rocker-roller suspension with AL-KO shock absorbers
- Tandem-axle with hydraulic disc brakes on both axles
- American-style hydraulic coupling, breakaway battery and 2 × heavy-duty safety chains
Storage & Work Station
- Large central lockable storage with dual-side access between wheel guards

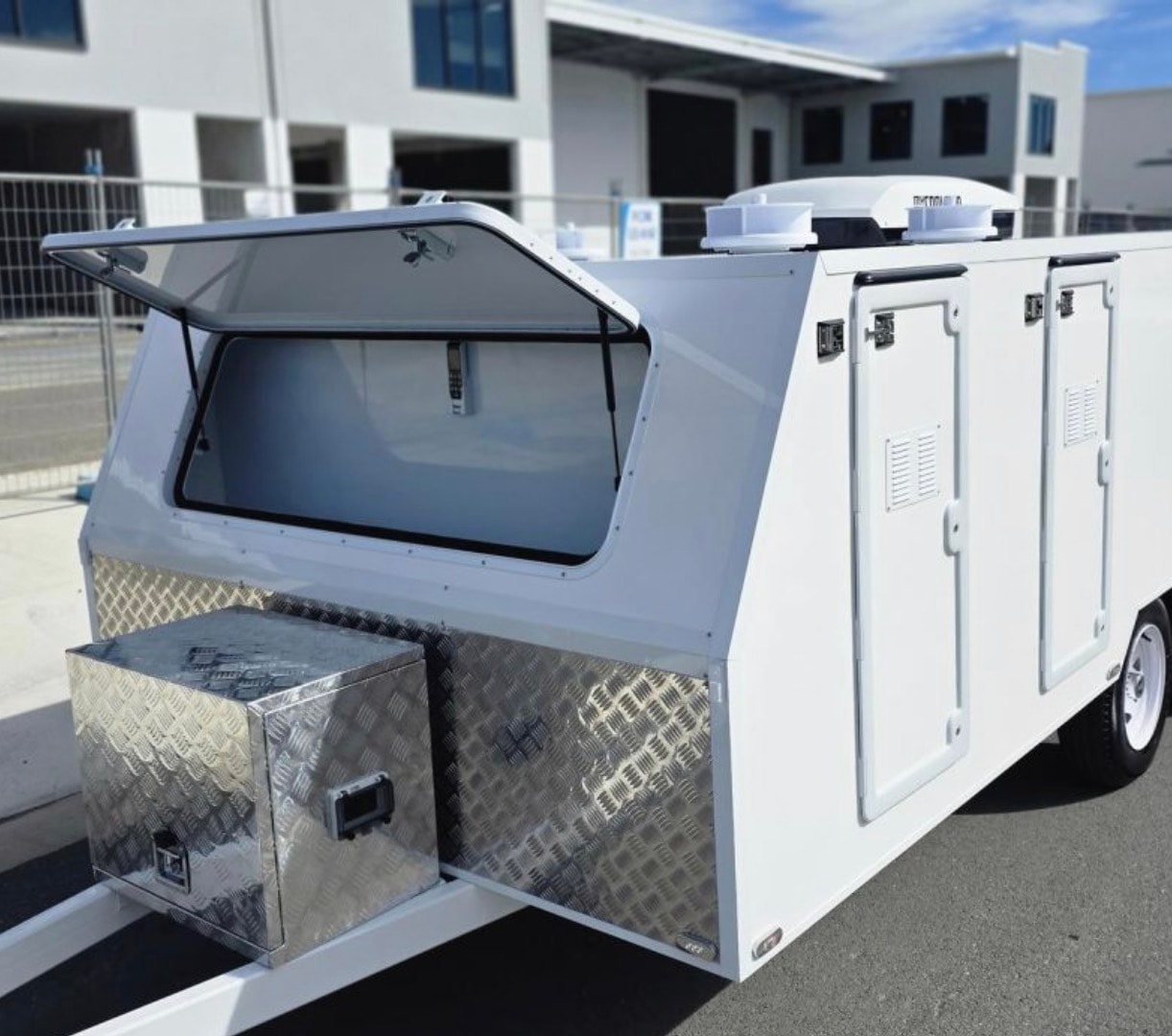

- Additional front equipment storage compartment with dedicated external access door
- Fold-down rear work table fabricated from 5 mm aluminium checker plate
Wheels & Tyres
- 16-inch alloy wheels with new light-truck tyres — 6-stud configuration
- Full-size spare wheel and tyre included
Enquire about HYK9 Trailers
All HYK9 trailers are custom built to your operational requirements. Contact us to discuss specifications, configurations and pricing.
